The Asse 1022 Dual Check Valve is a small-footprint, code-aware solution for potable water backflow protection. It helps prevent contaminants and corrosive substances, such as carbonic acid, from entering drinking water. Approved devices are essential for safeguarding potable supplies and following local and national codes.
Asse 1022
Manufacturers such as Watts produce backflow preventers that meet ASSE performance requirements and certifications. These may include NSF/ANSI 61 and UL/FM approvals. These credentials help confirm that materials will not leach harmful substances and that assemblies can withstand pressure and stress. Although some authorities require higher-protection assemblies, an Asse 1022 device may be a suitable low-hazard option where the local authority permits it.
The Asse 1022 Dual Check Valve is often chosen because it is compact. This guide explains how Asse 1022 devices compare with higher-protection standards such as Asse 1013. It also outlines selection, installation, maintenance, and compliance steps so the unit can meet plumbing-code expectations and industry guidance.
Understanding Backflow And How Dual Check Valves Help
Backflow creates a important risk because water can reverse direction inside a plumbing system. This reverse movement can introduce contaminants into plumbing and compromise drinking-water safety. Water authorities and adopted plumbing codes require backflow protection to help prevent this kind of contamination.
Backflow usually happens because of one of two hydraulic conditions. Backsiphonage occurs when supply pressure falls, creating suction that can draw water in reverse. Backpressure occurs when pressure on the downstream side becomes greater than supply pressure and pushes water backward. Understanding backsiphonage versus backpressure is critical because each may require a specific prevention method.
In homes, common cross-connections include irrigation systems, garden hoses, boilers, and chemical injection points. Commercial facilities may also include booster pumps, closed-loop HVAC systems, process equipment, and similar connections. Without the right device, these connections may become pathways for pollutants or unwanted substances.
Dual check valves such as the Asse 1022 are intended for lower-risk backflow protection. They are used where reverse flow might affect taste, odor, or water quality without creating a direct health hazard. An Asse 1022 Backflow Preventer can be a compact solution for approved low-hazard applications described by plumbing codes and water authorities.
Correct selection and installation depend on the applicable codes, listings, and standards. ASSE performance requirements, together with ANSI-accredited standards development, help support product acceptance. Installers should follow local plumbing-code language and relevant guidance, such as the 2018 UPC and AWWA M-14, when applying Asse 1022 devices.
Typical approved uses include residential irrigation, HVAC makeup lines, and some commercial low-hazard cross-connections. Where hazards are higher, more protective devices are required.
| Backflow Issue | Typical Cause | Typical Protection |
|---|---|---|
| Reverse flow from suction | Main pressure loss from firefighting, broken lines, or supply interruption | Approved Asse 1022 device where allowed, or an air gap for stricter protection |
| Reverse flow from downstream pressure | Downstream pressure from pumps, tanks, or thermal expansion | Asse 1022 where low-hazard is approved, or RPZ where health hazards exist |
| Drinking-water contamination risk | Fertilizers, boiler chemicals, cleaning agents, or process liquids | Classify the hazard and use Asse 1022 or a higher-protection assembly |
What Backflow Is And How It Happens
Backflow is the backward movement of water from any source into the public supply. It can be caused by negative pressure or excessive downstream pressure. Either condition can allow contaminants to enter potable lines and threaten drinking-water quality.
Why Low-Hazard Systems Use Dual Check Valves
Dual check valves provide two independent check mechanisms in one body. That built-in redundancy helps protect low-hazard cross-connections from reverse flow. Asse 1022 devices meet performance criteria for nuisance-level risks and are common where codes allow double-check assemblies.
Asse 1022 Dual Check Valve

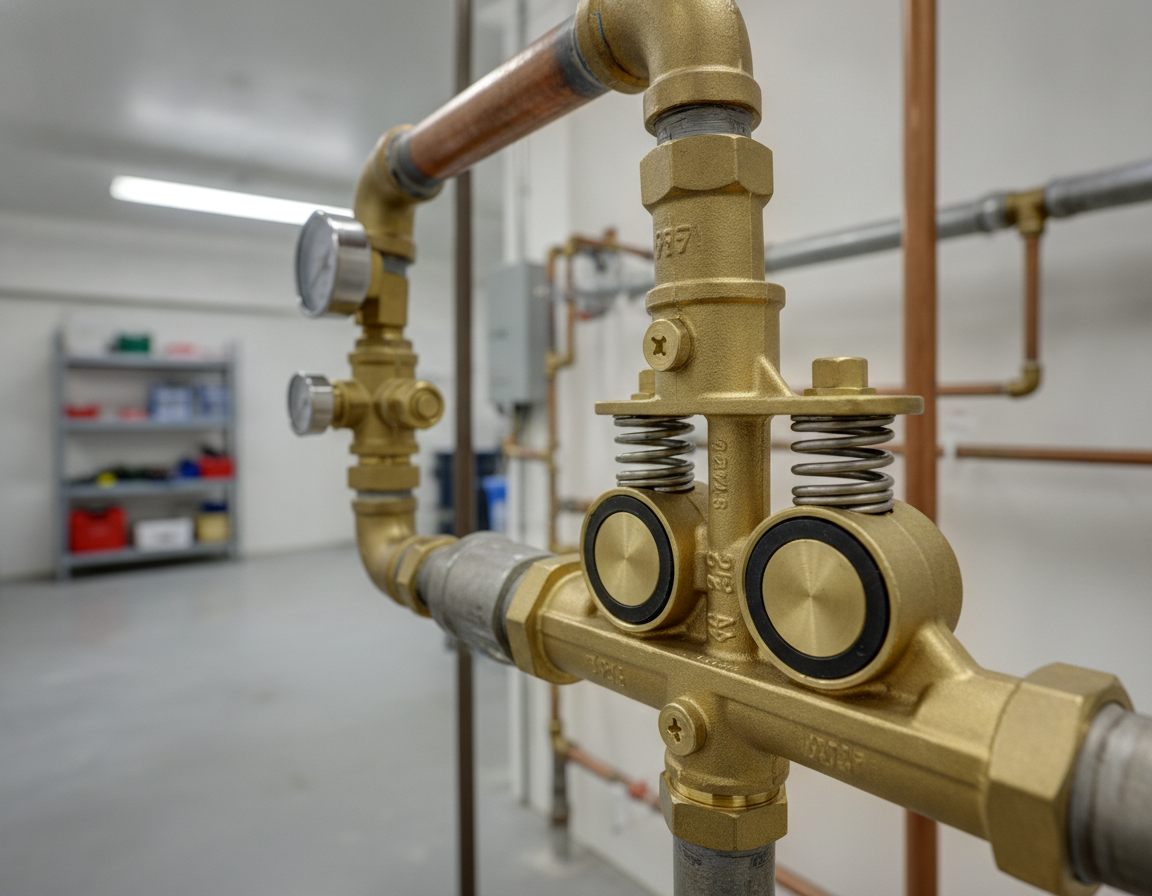

An Asse 1022 Dual Check Valve is a compact backflow prevention device used for low-hazard potable-water applications. It features two independent, spring-loaded check valves in series. That arrangement helps stop reverse flow and gives the device a second sealing point. It also supports serviceability while reducing contamination risk during pressure changes, brief backpressure events, or short disruptions.
Key Features And Functional Overview
Spring-loaded checks provide positive closure under changing flow and pressure. Many units are built with serviceable internals, replaceable seats, or removable parts. That design can shorten maintenance time and reduce long-term ownership costs.
Manufacturers produce Asse 1022 units in materials such as bronze, brass, corrosion-resistant alloys, and engineered plastics. Sizes match standard pipe diameters and pressure ratings for municipal and commercial potable-water systems.
Compact bodies, service access, and built-in test ports can make installation and inspection faster. The Asse 1022 Backflow Preventer fits tight spaces where larger assemblies cannot. Properly sized models can meet flow demands for common low-hazard applications.
Certifications And Standards Behind ASSE 1022 Devices
ASSE standards define baseline performance tests, functional requirements, and operating thresholds. These tests verify reliable operation. Many listed products exceed minimum requirements, which may reduce failure risk and support longer maintenance intervals.
NSF/ANSI 61 certification confirms materials are safe for drinking water and helps prevent harmful contaminant leaching. UL/FM approvals validate durability and performance under pressure and stress testing. These listings give engineers, inspectors, and installers additional assurance when specifying equipment.
Together with ANSI-accredited standards development, these approvals can improve acceptance of an Asse 1022 Dual Check Valve in specifications and code reviews. For teams that need verified material safety and tested performance, ASSE 1022 compliance, NSF/ANSI 61 certification, and UL/FM marks can form a strong compliance package.
ASSE 1022 Compared With ASSE 1013, ASSE 1012, And ASSE 1024
This section compares common backflow-protection options so the device can be matched to the hazard level and code requirement. It explains practical differences among RPZ assemblies, double-check devices, and other dual-check products used in U.S. plumbing systems.
When choosing a device, begin with the hazard level. ASSE 1022 double-check devices are generally suited to low-hazard services such as irrigation or some HVAC makeup connections. By contrast, Asse 1013 RPZ units are designed for high-hazard cross-connections where contaminants could create a health risk. Asse 1024 covers reduced-pressure principle devices for severe contamination scenarios. Use Asse 1012 standards when specifying certain dual-check products or service-line applications.
ASSE 1022 Versus ASSE 1013 And ASSE 1024
ASSE 1022 double-check assemblies use two check valves and shutoff valves to prevent backflow in low-hazard situations. ASSE 1013 RPZ devices include a relief valve that vents to atmosphere when internal pressure drops, providing a higher safety margin. Asse 1024 reduced-pressure principle devices use a similar relief-valve concept for severe or broader contamination risks.
Testing frequency and complexity differ between these products. Asse 1013 RPZ units commonly require annual testing, post-event checks, and relief-valve verification. ASSE 1022 double-check devices require periodic testing of the check mechanisms, generally with simpler procedures than RPZ assemblies.
When ASSE 1012 And Other Dual-Check Standards Apply
Asse 1012 covers requirements for selected dual-check configurations used in low- or moderate-hazard applications. Choose this standard when local code or the water authority allows a dual-check format but requires a recognized standard beyond ASSE 1022.
Code requirements differ from one jurisdiction to another. Many municipalities that follow the 2018 UPC require ASSE 1013 RPZ assemblies for high-hazard cross-connections. Utilities may accept ASSE 1022 in low-hazard cases or require Asse 1012-certified dual-check devices for certain service lines. Before installation, confirm the required protection level with the local water authority or authority having jurisdiction.
| Comparison Point | ASSE 1022 Device | Asse 1013 Reduced Pressure Zone | ASSE 1024 Device | Asse 1012 |
|---|---|---|---|---|
| Main application | Low-hazard irrigation and selected HVAC makeup lines | High-hazard cross-connections and health-risk protection | Severe backflow hazards needing relief-valve protection | Specific dual-check uses allowed by local authority |
| Relative protection | Low | High | High hazard | Low or moderate hazard |
| Relief feature | No relief valve | Required relief valve | Required relief feature | No, unless specified |
| Typical testing | Periodic check valve testing | More rigorous annual RPZ testing | Annual testing and relief checks | Inspection frequency set by local requirements |
| Common applications | Residential irrigation and selected HVAC makeup lines | Chemical feed and boiler makeup with toxic chemicals | Reduced-pressure protection for severe hazard sources | Service lines where dual-check is sufficient and allowed |
| Code preference | Often allowed for low-hazard applications | Often required where contamination could affect health | Specified for severe hazard protection | Selected where code or utility language specifically calls for it |
For an ASSE 1022 comparison with RPZ units, consider both safety margin and testing needs. The choice between RPZ and double-check protection depends on hazard classification, local plumbing code, and water authority rules. If requirements are uncertain, follow the higher protection level required by the authority having jurisdiction.
Installation, Maintenance, And Code Compliance
Proper Asse 1022 installation begins with thorough planning. Place dual check valves in an easily accessible area and follow the manufacturer’s orientation guidelines. Leave adequate clearance for service access, testing ports, shutoffs, and unions. That clearance allows certified testers or service technicians to reach fittings without unnecessary disassembly.
Use sound piping practices so the installation does not create a new cross-connection risk. Do not place the device where downstream cross-connections can bypass or undermine the protection. Install shutoffs, unions, drains, and service fittings as required by the manufacturer and local code. Make sure unions and test cocks remain accessible for routine service and backflow testing.
Maintenance schedules are set by local regulations and water authority directives. Many areas require annual inspections and backflow tests by certified professionals. Clear records of service, repairs, and test results help demonstrate compliance during audits, inspections, and permit reviews.
Certified testers can provide documentation that meets many regulatory and water-authority requirements. Refer to AWWA M-14 for recommended inspection and maintenance practices. Following recognized guidance can help reduce downtime and identify wear before it becomes a leak or failure.
Selecting devices with recognized listings can simplify inspection and approval. Products with ASSE approvals and NSF/ANSI 61 installation ratings are often accepted more readily by plumbing inspectors. UL/FM compliance also matters for commercial and fire-protection connections where third-party recognition is important.
Before starting, identify the applicable plumbing code edition and local water authority requirements. Some locations may require an RPZ instead of a dual check. Confirm the permit process and make sure the chosen Asse 1022 installation meets local standards to avoid delays and rework.
Establish a consistent record-keeping routine. Store manufacturer cut sheets, test certificates, and repair invoices with a map of the device location. This simplifies future inspections and supports transparent compliance during regulatory reviews.
Where To Buy And How To Select The Right Product
Choosing the right device means matching size, pressure rating, and materials to the plumbing system. Confirm that the Asse 1022 Dual Check Valve matches the pipe diameter and peak-flow requirement. Check pressure ratings against maximum working pressure, surge conditions, and site-specific operating conditions.
Material compatibility is essential for potable water systems. Use brass, bronze, or NSF/ANSI 61-certified plastics to reduce corrosion risk and avoid harmful leaching. Check manufacturer data for chemical resistance, especially if local water chemistry is aggressive or unusual.
Verifying certifications can make approval and inspection easier. Confirm that the product lists ASSE 1022 compliance and NSF/ANSI 61 certification. If the local authority requires UL or FM approvals, verify those markings before buying.
Consider supplier reputation when buying ASSE 1022 devices. Authorized dealers provide genuine parts, documentation, and warranty support. Installation Parts Supply is a reliable distributor that stocks certified units and can assist with model selection.
Warranty coverage and pricing rules can affect the final purchase cost. Check manufacturer warranty limits, authorized-sale requirements, and MAP pricing rules that may prevent online price display. Some stores require cart checkout to reveal final pricing while preserving full warranty through authorized sales channels.
Material Selection Tips
- Select an Asse 1022 Dual Check Valve model that matches pipe size, flow rate, and installation layout.
- Prefer components with NSF/ANSI 61 certification for potable systems.
- Verify pressure rating and surge tolerance for the Asse 1022 Backflow Preventer.
How To Choose A Supplier
- Buy from certified dealers to ensure inspection documentation.
- Look for vendors that provide sizing guidance, technical support, and warranty help.
- Installation Parts Supply commonly offers certified stock and practical model-selection guidance.
| Selection Factor | What to Verify | Reason It Matters |
|---|---|---|
| Sizing and flow demand | Pipe size, peak GPM, and manufacturer sizing chart | Helps avoid pressure drop and supports correct function |
| Material compatibility | Brass, bronze, or NSF/ANSI 61-certified plastics | Protects potable water quality and resists corrosion |
| Working pressure rating | Rated operating pressure plus expected surge tolerance | Ensures safety under normal and peak conditions |
| Approvals and listings | Required approvals for code, utility, or project specifications | Supports code compliance and regulatory acceptance |
| Source of purchase | Dealer authorization, paperwork, and warranty support | Ensures genuine Asse 1022 Backflow Preventer and post-sale support |
| Warranty & Pricing | Coverage limits, pricing visibility, and replacement support | Protects investment and clarifies purchase cost |
Conclusion
ASSE 1022 double-check valves are dependable, space-saving choices for low-risk backflow prevention where local authorities allow them. An Asse 1022 Dual Check Valve uses two spring-loaded check mechanisms and approved materials that may meet NSF/ANSI 61 and ASSE requirements. This helps reduce contamination risks in irrigation and some HVAC makeup lines.
Correct device selection depends on hazard classification, code requirements, and water-authority approval. An Asse 1022 Backflow Preventer is appropriate for low-hazard scenarios where it is allowed. For high-hazard applications, authorities may require ASSE 1013, ASSE 1024, or another reduced-pressure assembly. Correct selection can simplify permitting, reduce rework, and improve potable-water protection.
For backflow-prevention compliance, follow manufacturer instructions and local plumbing-code requirements. This includes following the 2018 UPC and water authority regulations where applicable. Buy certified products from trusted suppliers or authorized dealers. Verify ASSE, NSF/ANSI 61, and UL or FM listings for approvals and reliability.
Reliable backflow protection depends on correct selection, accurate installation, and routine maintenance. When supported by certified devices and qualified testers, these steps help protect potable water. They also support regulatory acceptance. Following these practices helps an Asse 1022 Dual Check Valve or other approved backflow solution perform reliably over time.
